Set up once

Coordex

See what stands on your server’s world map, live, and feed it to your hunting tasks.

Where

Open Coordex.

Use it to

Keep a live list of targets on your server’s world map for Rally Setter and Solo Hunt, and browse everything Boss Radar finds.

You need

A server that Boss Radar reads for you. It shows as a card on the Boss Radar tab.

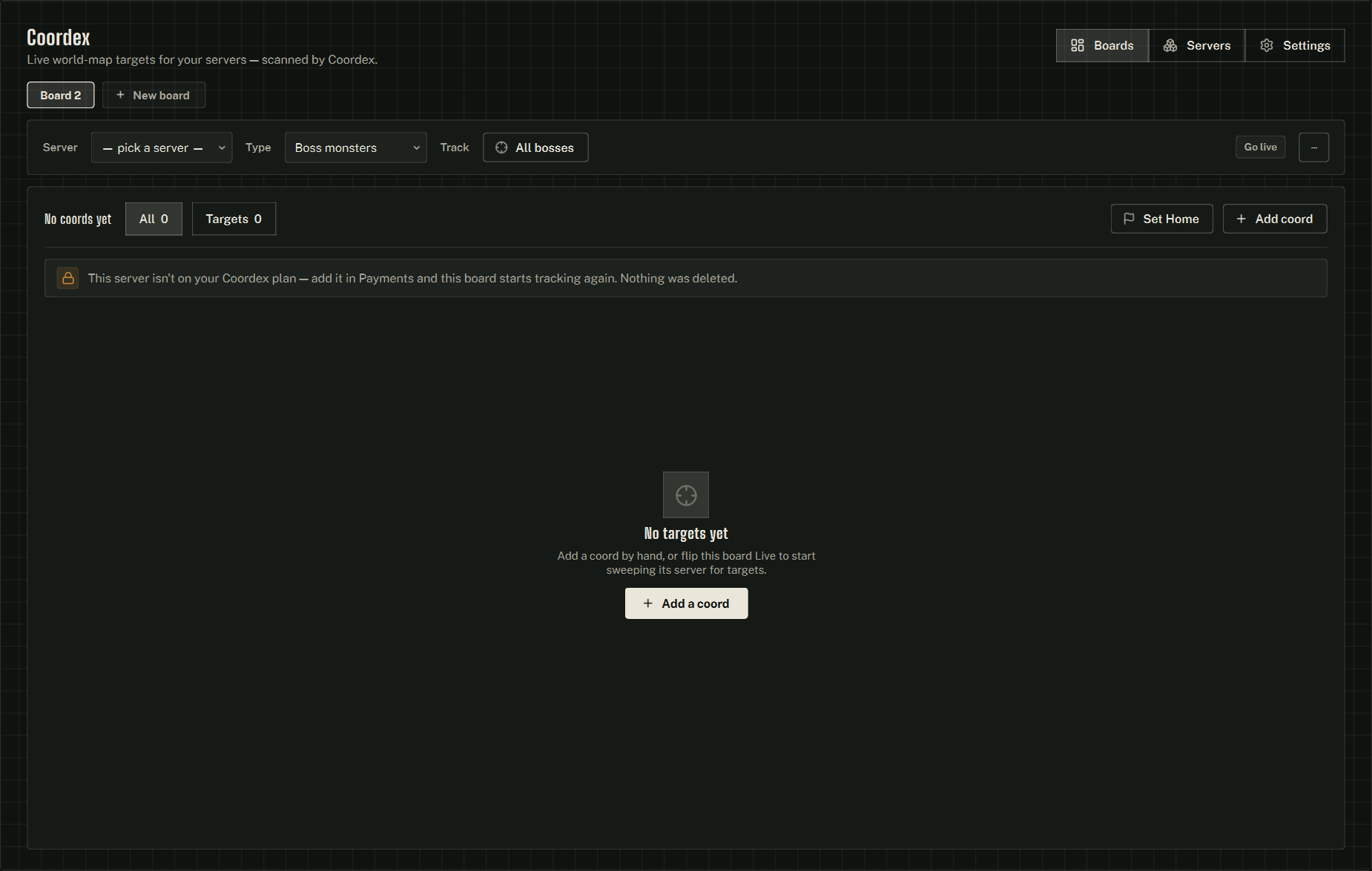

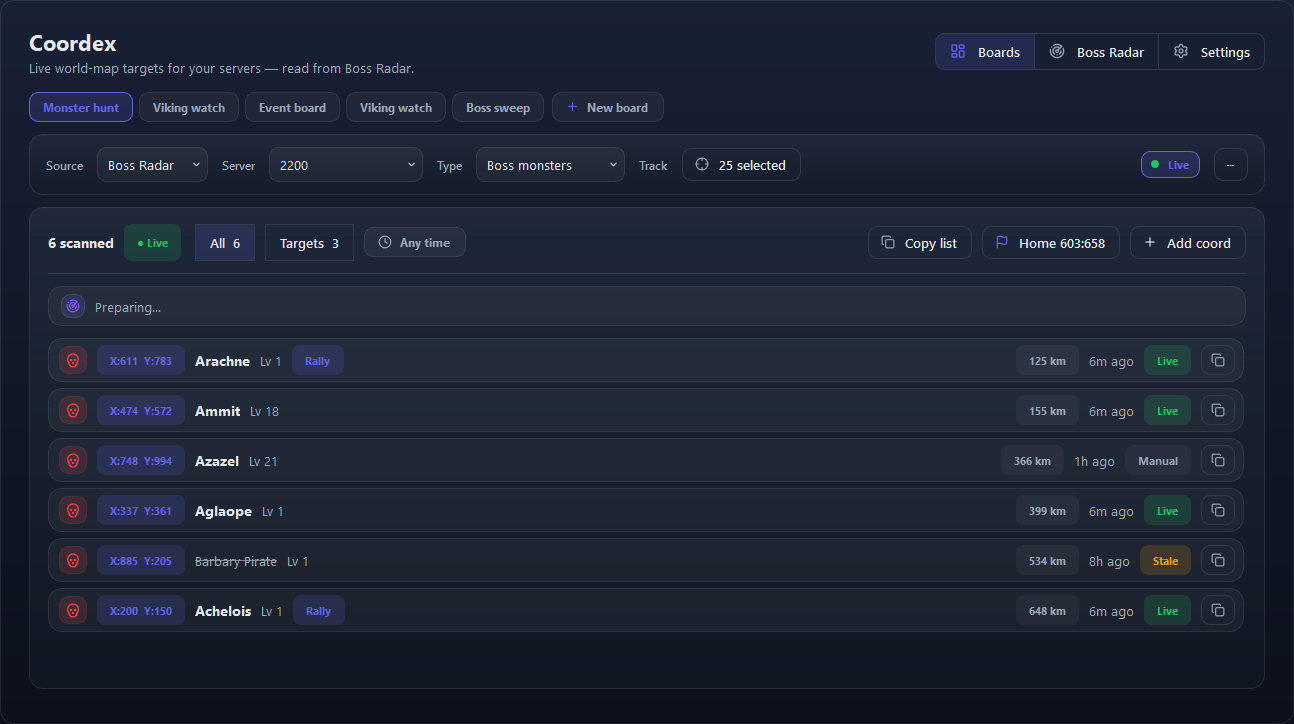

Coordex lists what stands on your server’s world map: boss monsters, resource tiles, subordinate cities, collectables and event targets. You can browse them, sort them by distance from your keep, copy them, and feed them to Rally Setter and Solo Hunt.

The coordinates come from Boss Radar, a map reader that scans each server on its own machines. This PC scans nothing. When you turn on Go live for a server, Evonex follows Boss Radar and fills your boards with what it finds.

123456789101234567812345678910

1. 1Boards · Boss Radar · Settings Switches between your boards, the servers Boss Radar reads, and Coordex settings.
2. 2A board chip Picks a board. Each chip shows one board’s name. The checked chip is the open board.
3. 3New board Makes a board. Name it, then pick its server.
4. 4Source Says where the coordinates come from. Boss Radar is the only choice.
5. 5Server Picks the server this board follows. Only its number shows.
6. 6Type Picks what the board lists: bosses, resource tiles, subordinate cities, collectables or event targets.
7. 7Track Picks which finds count as targets. It reads All bosses until you pick some.
8. 8Live Turns live reading on for this server. It reads Go live while it is off.
9. 9⋯ Opens Rename, Export to sheet…, Clear board… and Delete.
10. 10The Boss Radar line Says what Boss Radar is doing for this server. Here it is getting ready.

1. 1New board Makes a board. Name it, then pick its server.
2. 2Source Says where the coordinates come from. Boss Radar is the only choice.
3. 3Server Picks the server this board follows. Only its number shows.
4. 4Type Picks what the board lists: bosses, resource tiles, subordinate cities, collectables or event targets.
5. 5Track Picks which finds count as targets. It reads All bosses until you pick some.
6. 6Live Turns live reading on for this server. It reads Go live while it is off.
7. 7⋯ Opens Rename, Export to sheet…, Clear board… and Delete.
8. 8The Boss Radar line Says what Boss Radar is doing for this server. Here it is getting ready.

1. 1Boards · Boss Radar · Settings Switches between your boards, the servers Boss Radar reads, and Coordex settings.
2. 2A board chip Picks a board. Each chip shows one board’s name. The checked chip is the open board.
3. 3New board Makes a board. Name it, then pick its server.
4. 4Source Says where the coordinates come from. Boss Radar is the only choice.
5. 5Server Picks the server this board follows. Only its number shows.
6. 6Type Picks what the board lists: bosses, resource tiles, subordinate cities, collectables or event targets.
7. 7Track Picks which finds count as targets. It reads All bosses until you pick some.
8. 8Live Turns live reading on for this server. It reads Go live while it is off.
9. 9⋯ Opens Rename, Export to sheet…, Clear board… and Delete.
10. 10The Boss Radar line Says what Boss Radar is doing for this server. Here it is getting ready.

Set up your first board

1. Open Coordex ▸ Boards and click New board. Name it — for example Server 2200 bosses — and click Save.
2. Open Server and pick your server. The list shows the number only, like 2200.
3. Leave Type on Boss monsters. The other types list resource tiles, subordinate cities, collectables and event targets.
4. Click Go live. It turns into Live, and a line under it says what Boss Radar is doing.
5. Click Set Home, type your keep’s X and Y, and click Set Home again. Rows then show their distance from your keep, nearest first.
6. In Rally Setter or Solo Hunt, pick this board as the task’s Coordex board.

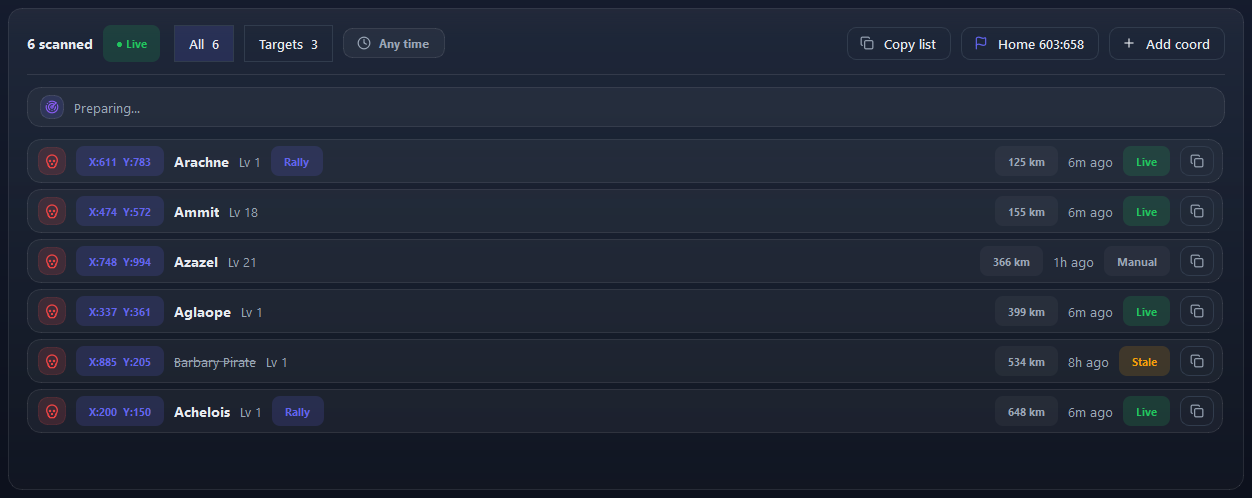

Read the coordinates

123456789123456789123456789

1. 1All · Targets Switches between every coordinate on the board and only the ones that count as targets.
2. 2Any time Shows only coordinates seen within the time you pick. It hides rows and deletes nothing.
3. 3Copy list Copies the rows shown as text, one line for each.
4. 4Home Sets your keep as the point distances are measured from. With a Home set, rows show their distance and the nearest comes first.
5. 5Add coord Adds a boss that you spotted yourself.
6. 6The skull Strikes a boss you saw gone. The row stays, greyed out, and tasks skip it. Click it again to undo.
7. 7Rally Says only a rally is set on this boss. A Solo pill means a single march. No pill means either.
8. 86m ago Says when Boss Radar last saw this tile.
9. 9Live Says where the row comes from: a fresh Boss Radar row.

Other kinds of find show a status pill instead. A resource tile reads Full or Partly gathered. A subordinate city reads Occupied or Unoccupied. An event target reads Occupied or Free. Those boards have no Add coord.

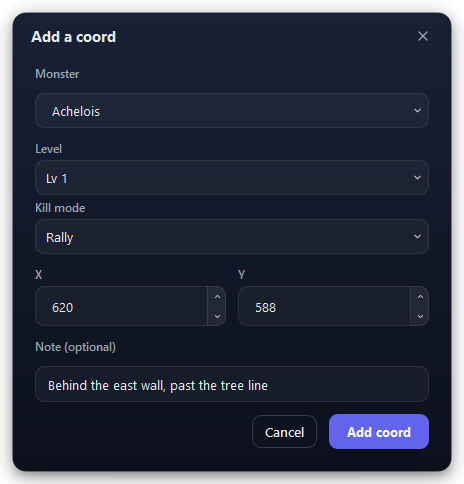

Add a coord by hand

Use Add coord for a boss you spotted yourself. It joins the board as a Manual row. Adding the same tile again updates it.

123456712345671234567

1. 1Monster Searches the monster library as you type.
2. 2Level Picks the boss’s level.
3. 3Kill mode Says who may take it: Solo, Rally or Both.
4. 4X Sets the east–west place, from 1 to 1200.
5. 5Y Sets the north–south place, from 1 to 1200.
6. 6Note (optional) Keeps a reminder for yourself.
7. 7Add coord Puts the boss on the board.

• Kill mode starts at the level’s own default, such as Rally for a summoned boss. On a level that only a single march can attack, like a Goblin, it is set to Solo and can’t be changed.
• A name that is not in the monster library saves as a custom pin. A line says so, and Level and Kill mode go away.
• X and Y must each be between 1 and 1200. The world map is that many tiles across.

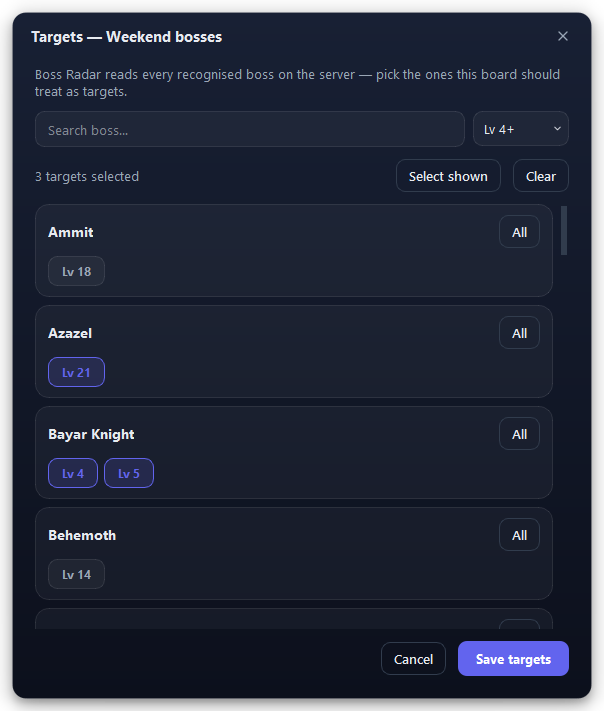

Choose what counts as a target

Click Track to pick the bosses this board treats as targets. Pick a whole boss with All, or single levels. Select shown picks everything the search and the level filter show. Leave it empty to count every recognised boss. Other types have their own picker, with chips such as Type and Level for resource tiles.

123456712345671234567

1. 1Search boss Finds a boss by name.
2. 2Minimum level Hides the lower levels. Any level shows all.
3. 3The count Says how many targets you picked, or that it tracks everything.
4. 4Select shown Picks every level the search and the filter show.
5. 5All Picks every level of one boss.
6. 6A level chip Picks one level. A picked chip is lit.
7. 7Save targets Saves your picks to the board.

Show only what was seen lately

Click Any time, the clock button, and click a mark on the ruler: 1m, 5m, 1h, 12h, 24h and others, or Any. The button then reads Last 5 min or the like. The list and Copy list follow it. It only hides rows: nothing is deleted, and nothing a task reads changes. Evonex remembers the choice for each type, and Explore uses the same one.

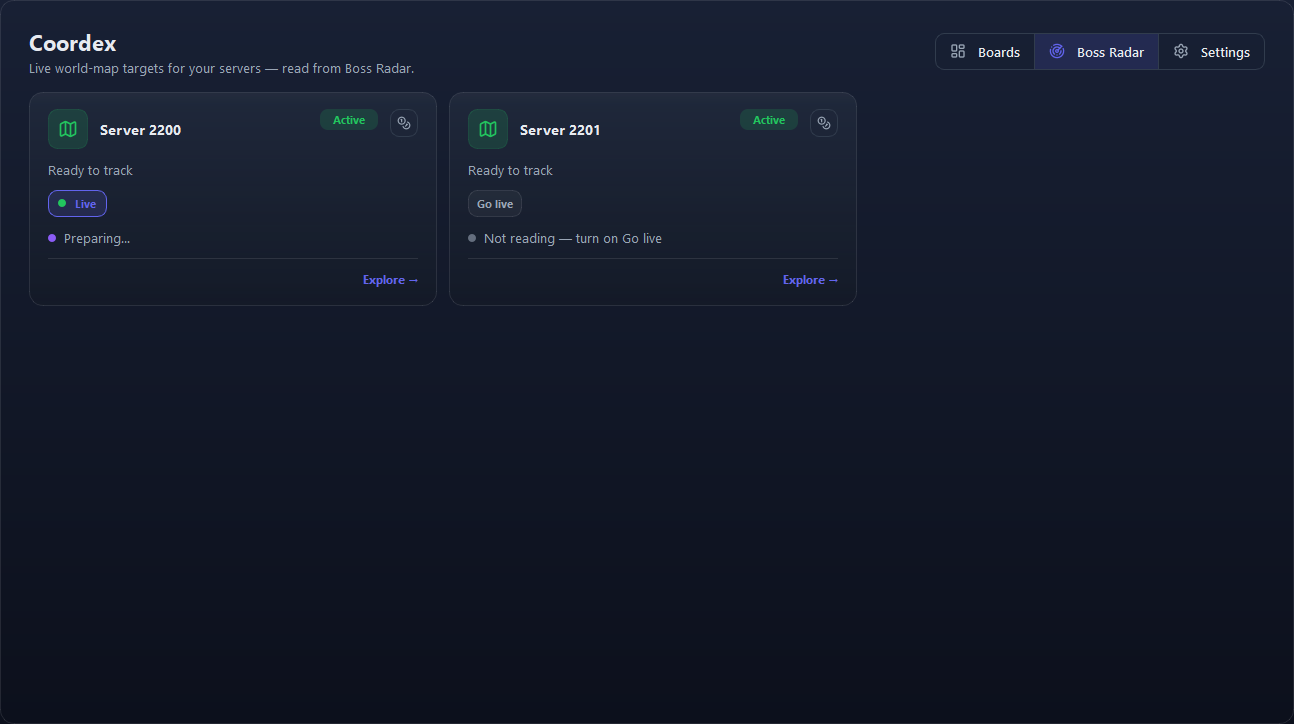

Turn servers on and off

Open the Boss Radar tab. Each card is a server that Boss Radar reads for you. Click a card to open Explore for that server.

123456781234567812345678

1. 1Boss Radar Lists the servers Boss Radar reads for you.
2. 2Server 2200 Names the server. Click anywhere on the card to open Explore.
3. 3Active Shows that the server is ready to read.
4. 4Live A server that is on. The switch reads Live, with a dot.
5. 5Preparing… Says Boss Radar is getting the scan ready.
6. 6Go live Turns live reading on for this server. The switch then reads Live.
7. 7The Boss Radar line Says what Boss Radar is doing for this server. Here, nothing: Go live is off.
8. 8Explore → Opens Explore for this server.

The same short line sits on the card, on the board and in Explore. These are the words you can see:

Keep it fresh in Settings

The Settings tab has a Freshness card. It lists each server with Live, Preparing or Not reading, when it was last updated (updated 3m ago) and its stale window (stale ~5h).

A find that Boss Radar has not seen again within a server’s stale window is struck through, and tasks skip it. Nothing outlives 24 hours, except subordinate cities, which are permanent.

Goblins

A Goblin is a monster that only a single march can attack, because it has no Alliance War button. Boss Radar reads Goblins as Solo. Rally Setter never takes them, and Solo Hunt hunts them. In a boss pool, Rally Setter’s editor marks Goblin levels Solo only.

Boards belong to the PC they were made on

Each PC keeps its own boards. A board you make on the Gaming PC is not on the Office PC, and nothing another PC does changes it. Evonex keeps a backup of each board’s settings — its name, server, targets and Home — but never its coordinates. After a reinstall, Boss Radar fills the board again. A task finds its board by name on the PC it runs on, so make the board on the PC that runs the task. See Your PCs.

How Rally Setter and Solo Hunt use a board

• Each task reads one board, picked by name in its settings.
• Rally Setter takes Rally rows and rows with no pill. Solo Hunt takes Solo rows and rows with no pill, and never a Viking or a summoned boss.
• Struck and stale rows are skipped. When a task spends a coordinate, the row leaves the board, and that tile stays off it for an hour.
• Before Start, the readiness check looks at the board. With no live targets on it, it asks you to turn on Go live for the board’s server.
